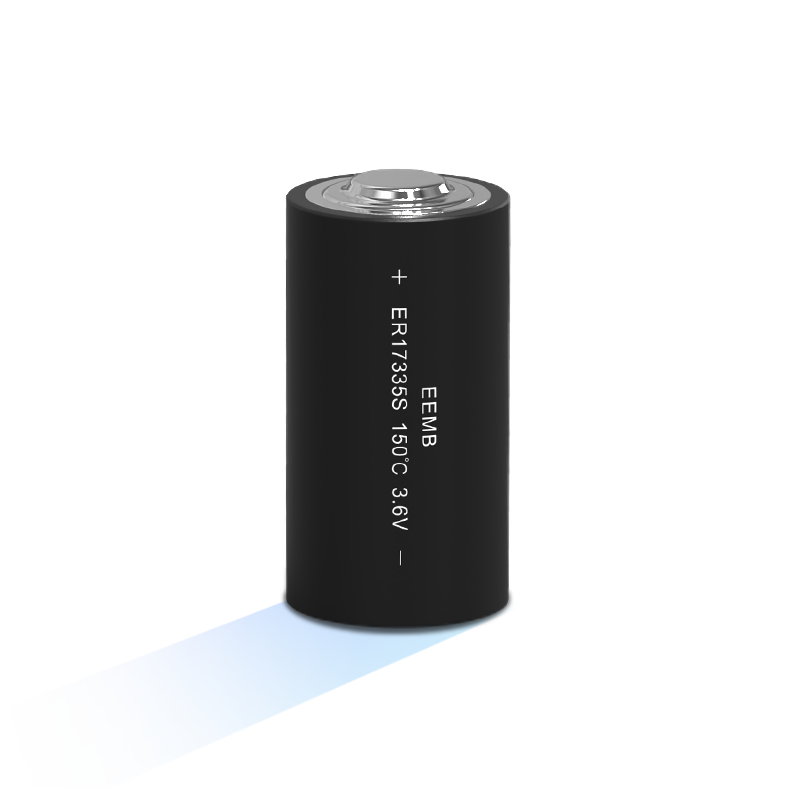

ER17335S-High Temperature Type Lithium Thionyl Chloride Battery
Cylindrical Cell Batteries 3.6V High Temperature Type Thionyl Chloride Lithium Battery, 17335S size 2/3A
| 型号: | ER17335S |
| 化学成分: | Lithium Thionyl Chloride (Li-SoCl2) Battery |
| 描述: | Cylindrical Cell 2/3A Size High Temperature Li-SoCl2 Lithium Thionyl Chloride 3.6V Battery ER17335S Non-rechargeable (Primary) 1200 mAh |
根据您的规格定制电池
产品详细信息
| 产品类别 | Bare Cell |
|---|---|
| 位置 | China |
| ASIN | |
| 产品型号 | ER17335S |
| 化学成分 | Lithium Thionyl Chloride (Li-SoCl2) Battery |
| 系列 / 类型 | ER Li-SoCl2-High Temperature |
| 额定电压 | 3.6 V |
| 额定容量 | 1200 mAh |
| 可充电/不可充电 | Non-Rechargeable (Primary) |
|---|---|
| 温度范围 | -55℃ ~ +150℃ |
| 电池组电池大小 | 2/3A |
| 外形尺寸 | 0.68" Dia x 1.37" H (17.0mm x 35mm) |
| 重量 (g) | 19 g |
| 端接类型 | Button Top (extending) |
| 合规性 |
其他信息
[Value]:
ER17335S 2/3A Size 3.6V/1200 mAh
Li-SoCl2 Lithium Thionyl Chloride Battery High Temperature Type
Non-RechargeableNominal Capacity: 1200mAh
Nominal Voltage: 3.6 V
Max Continuous Discharge Current: 80mA
Weight: 19g
Diameter: 17mm
Height: 35mm
Operating Temperature: -20 ° C ~ +150 ° C
Shelf Life: 10 years
Self-discharger Rate: ≤1%
[Compatible]:
Ideal For Alarm System/PLC Memory Backup Power/CNC System/Servo Motors/Machine Tools/Instruments/Special Electronic Equipment/Intrusion Sensors/Invisible Fencing/Smart Utility Metering/Emergency Backup/Gas/Water/Electric Meter/Toll RFID/IoT/Movement Sensor Monitor/Home Security System/Alarm System/PLC/Fleet Monitoring/Data Collection/AMR Add-ons/Smoke Alarms/Telematic Devices/Medical Devices.
[Single Use]:
These batteries are NOT rechargeable."
